Primary promotion before the introduction of GTID used to be a manual and highly error-prone task. GTIDs simplified it by eliminating the need to be aware of the binary log file names and positions to do a promotion or swap.

In this post, I’ll walk you through how I did a MySQL primary promotion using GTIDs. Below is our simple replication topology:

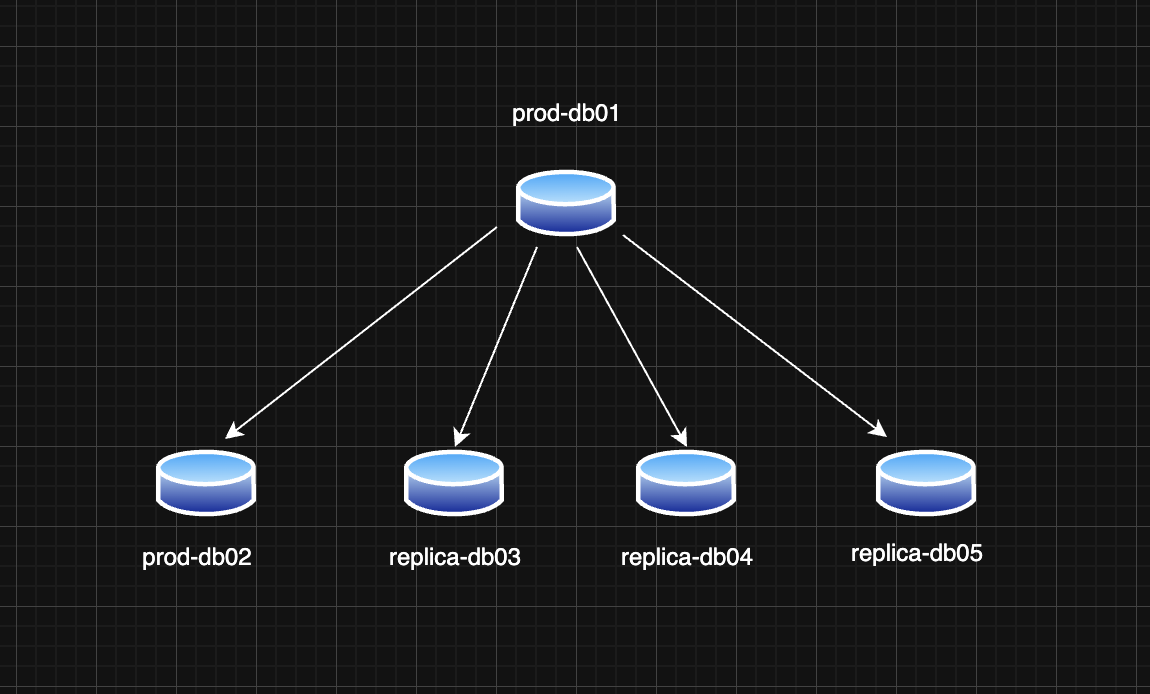

MySQL Replication Topology

  • One primary MySQL instance: prod-db01
  • Four replicas: prod-db02, replica-db03, replica-db04, replica-db05 (each potentially having errant GTIDs due to historical promotion/demotion cycles or unclean state)

What is GTID-Based Replication?

GTID (Global Transaction Identifier) ensures each transaction is uniquely identified and executed only once across the replication topology. This helps simplify failover and promotion logic.

Each GTID is a combination of server_uuid:transaction_id, and MySQL keeps track of GTID_EXECUTED and GTID_PURGED sets to manage consistency.

Why Errant GTIDs are a Problem

An errant GTID is a GTID that exists on a replica but not on the current primary. If such a GTID exists, that replica cannot connect to the new primary (after promotion) unless it also has that GTID.

When promoting a new primary, all replicas must have only the GTIDs that also exist on the new primary (or a subset of them).

Step-by-Step: Promoting a New Primary with GTID

Assume the following GTID sets:

prod-db01  (old primary): Executed GTID set: abc:1-12345, def:1-123
prod-db02             : Executed GTID set: abc:1-12345, def:1-123
replica-db03          : Executed GTID set: abc:1-12345, def:1-123, ghi:1-50
replica-db04          : Executed GTID set: abc:1-12345, def:1-123, ijk:1-100
replica-db05          : Executed GTID set: abc:1-12345, def:1-123, lmn:1-500

We’re choosing prod-db02 as the new primary. This means we need to:

  1. Inject the missing GTIDs (ghi:1-50, ijk:1-100, lmn:1-500) as empty transactions into prod-db02.
  2. Point the other replicas to this new primary.

Step 1: Inject Errant GTIDs into the New Primary

Create a SQL file inject_gtids.sql:

-- inject_ijk.sql
SET GTID_NEXT='ijk:1'; BEGIN; COMMIT;
SET GTID_NEXT='ijk:2'; BEGIN; COMMIT;
-- ... up to ijk:100
SET GTID_NEXT='AUTOMATIC';

You can automate it with a shell script:

#!/bin/bash
uuid=$1
start=$2
end=$3
for i in $(seq $start $end); do
  echo "SET GTID_NEXT='$uuid:$i'; BEGIN; COMMIT;"
done
echo "SET GTID_NEXT='AUTOMATIC';"

Usage:

./generate_gtid_injector.sh ijk 1 100 > inject_ijk.sql
mysql -uroot -p < inject_ijk.sql

Repeat this for ghi:1-50 and lmn:1-500.

Step 2: Configure Replication on Remaining Replicas

On replica-db03, replica-db04, and replica-db05:

STOP REPLICA;
RESET REPLICA ALL;
CHANGE REPLICATION SOURCE TO
  SOURCE_HOST='prod-db02',
  SOURCE_USER='replica_user',
  SOURCE_PASSWORD='*****',
  SOURCE_AUTO_POSITION=1;
START REPLICA;

Note: Make sure binary log retention is set appropriately to avoid 1236: missing binary log errors.

Step 3: Validate Replication

Run:

SHOW REPLICA STATUS\G

Ensure:

  • Replica_IO_Running: Yes
  • Replica_SQL_Running: Yes
  • Seconds_Behind_Source: 0

Step 4: GTID Sanity Check

Make sure all nodes have compatible GTID sets:

SHOW GLOBAL VARIABLES LIKE 'gtid_executed';

You can use gtid_subtract() or gtid_subset() to compare sets:

SELECT GTID_SUBTRACT('replica_gtids', 'primary_gtids');

Should return an empty set if the replica is in sync.

Lessons Learned

  • Always check for errant GTIDs before promotion
  • Keep GTID sets as clean and consistent as possible
  • Automate injection of GTIDs for repeatable and safe operations
  • Use RESET REPLICA ALL when reconfiguring replicas after promotion
  • GTID simplifies failover, but you still need to be careful

Final Words

GTID-based replication brings predictability and reliability to MySQL high availability setups. Proper handling of GTID inconsistencies like errant transactions ensures smooth and safe failover without data loss.

This strategy was tested on a live environment with multi-TB datasets and worked reliably across all replicas.

Let me know your thoughts, questions in the comments

Happy Replicating!
