🧩 The Problem: Queries Stuck in “Opening/Closing Tables”

During peak traffic hours on our production MySQL primary (prod-shard3-db01), we started observing a sudden spike in query latency across multiple application services.
SHOW PROCESSLIST revealed that most active queries were in the states:

|Opening tables | SELECT ... FROM tbl_abc ...... |
|Opening tables | SELECT ... FROM tbl_lmn ...... |
|Closing tables | SELECT ... FROM tbl_xyz ...... |

and they were staying there unusually long — in some cases over several seconds.
Application performance degraded sharply, with slow responses and intermittent timeouts.

🔍 First Observation: Table Cache Thrashing

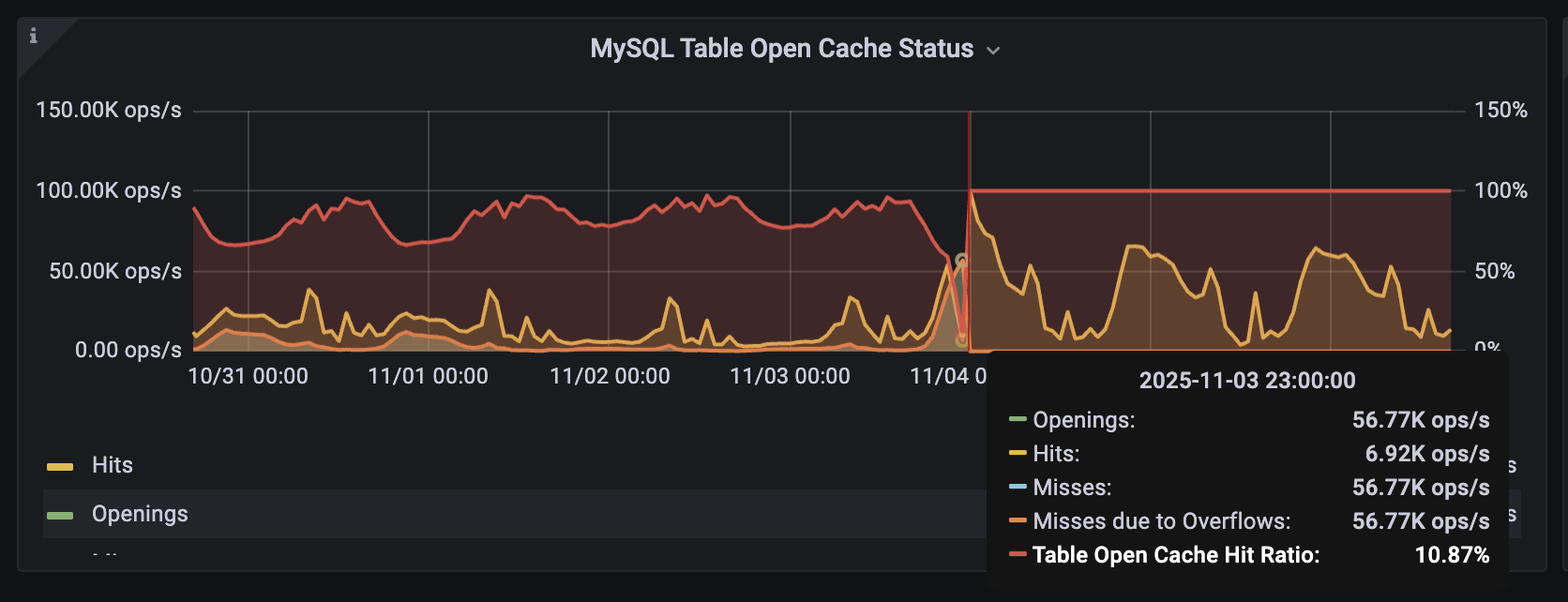

Our PMM dashboard “MySQL Table Open Cache Status” confirmed the suspicion —
the Table Open Cache hit ratio dropped to 10%, while misses due to overflows spiked sharply (~60K ops/sec).

table cache misses

In simple terms, MySQL was unable to reuse already-opened tables because its table_open_cache was too small.
As a result, every query was opening and closing table descriptors repeatedly — a heavy overhead, especially under thousands of concurrent connections.

⚙️ Step 1 — First Fix: Increase table_open_cache from 400 → 3000

We initially noticed that the server had the following value:

mysql> SHOW GLOBAL VARIABLES LIKE 'table_open_cache';
+--------------------+-------+
| Variable_name      | Value |
+--------------------+-------+
| table_open_cache   | 400   |
+--------------------+-------+

We increased it to 3000:

SET PERSIST table_open_cache = 3000;

Almost immediately, the “Opening tables” entries in the processlist began to disappear and most queries started executing normally again.

However, in PMM we could still see cache misses and a few overflow spikes, indicating that MySQL was still occasionally running out of cached table descriptors during high load.

⚙️ Step 2 — Final Fix: Increase table_open_cache to 8192

We further bumped the value to 8192:

SET PERSIST table_open_cache = 8192;

This completely stabilized the cache behavior — the Table Open Cache Hit Ratio went to 100%, and misses and overflows dropped to zero.

table cache hits

Application latency normalized immediately, and the MySQL Opened_tables status variable remained steady verfied from

show global status like 'opened_tables'

🧐 But Why Was table_open_cache So Small Initially?

Here’s where it got interesting.

When we originally had attempted to configure in the my.cnf file below values few weeks back:

table_open_cache = 40000
max_connections  = 10000

MySQL refussed it and logged below warnings in the error log

2025-10-01T20:38:20.318797Z 0 [Warning] [MY-010140] [Server] Could not increase number of max_open_files to more than 10000 (request: 386641)
2025-10-01T20:38:20.318801Z 0 [Warning] [MY-010141] [Server] Changed limits: max_connections: 9190 (requested 10000)
2025-10-01T20:38:20.318804Z 0 [Warning] [MY-010142] [Server] Changed limits: table_open_cache: 400 (requested 40000)

The root cause?

The OS-level open file limit for the MySQL service (mysqld) was capped at 10,000. Since each table and connection consumes file descriptors, MySQL could not honor the higher cache and connection settings, and it automatically reduced table_open_cache down to 400.

root@prod-shard3-db01:/home/pankaj# pid=$(pidof mysqld)
root@prod-shard3-db01:/home/pankaj# cat /proc/$pid/limits | awk 'NR==1 || /open files/'
Limit                     Soft Limit           Hard Limit           Units
Max open files            10000                10000                files

⚠️ Discovery: The “LimitNOFILE=Infinity” That Never Took Effect

While reviewing configuration, we found that a systemd override had already been created at:

/etc/systemd/system/mysql.service.d/override.conf

with the content:

[Service]
LimitNOFILE=Infinity

At first glance, this should have allowed MySQL to open unlimited file descriptors. That’s when we realized the catch: the MySQL service was never restarted after adding the override file. The LimitNOFILE=Infinity directive was not yet applied to the running systemd service. We verfied this by comparing mysql uptime (mysqladmin status), with the commit timestamp for the change made to the override file.

🔄 Step 3 — Restart to Apply the Systemd Override

After restarting the MySQL service during a maintenance window:

systemctl restart mysql

The new limit took effect successfully:

cat /proc/$(pidof mysqld)/limits | grep "open files"
Max open files: 1048576

Now the OS-level limit comfortably supported our desired table_open_cache and max_connections values.

🧠 Summary

This incident reinforced how MySQL performance tuning is as much about the OS layer as it is about MySQL itself.

A small table_open_cache combined with a tight open_files_limit caused thousands of queries to waste time repeatedly opening and closing tables. A few simple configuration adjustments — increasing table_open_cache and correctly applying the LimitNOFILE=Infinity override — brought the system back to full health.
